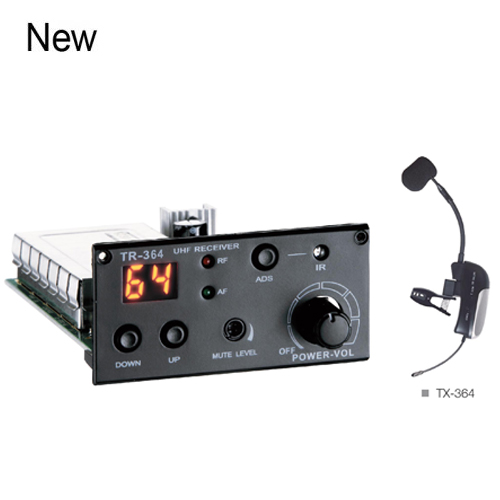

TR-364 UHF64CH Wireless Receiver for Saxophone Microphone

  • Product Specification

Function

Specification

Frequency range VHF

510-950Mhz
Frequency range depend on the regulations

Osillator

PLL Synthesized,Preset 64 selectable channels

Frequency Bandwidth

30MHz

Receiving Mode

Single Channel,Non-Diversity

Frequency Stability

±0.005%

Modulation Mode

FM

LED Indicator

To Indicate the condition of receiving
AF Response 40Hz-17000Hz ± 3dB
RF Sensitivity -110dBm (sinad>30dB)
Diviation Range ±55KHz
Audio Output + 10dBv max.
RF Power Output 10dBm
Signal to Noise Ratio > 105dB(A)
Overall System T.H.D <0.5%
Power Supply DC12-18V
Receiver Module Dimen 125x72x36mm
Receiver Module Weight 90g

Attention: According to the reality provide
