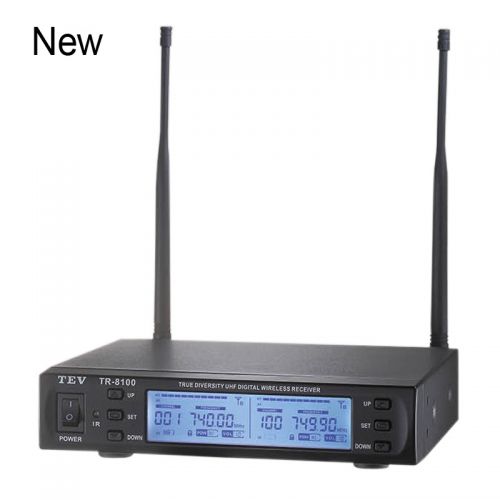

TR-8100 Digital UHF 100CH TRUE DIVERSITY Wireless Microphone System

APPLICATION

Digital Circuit , Analog Signal , Auto Search Channel

When setting up the channel , the CUP will calibrate the logic code automatically.Only when the logic codes from the CPU and the transmitter match will the signals be transferred.This extra step of logic codes calibration will reduce the likelihood of signal disruption.
LCD to indicate the information.
Stage Bright of LCD.easy to show ON / OFF
Microphone bettery indicator show in LCD
With HI / LO select for transmit power

Function	Specifications
Frequency Range	Digital UHF PLL 100CH (510-950MHz) Frequency range depend on the regulations
Oscillator	PLL Synthesized,Preset 100 selectable channels
Frequency Bandwidth	30MHz
Frequency Stabilization	±50KHz
Dynamic Range	>90dB
T.H.D	<0.5%
Frequency Response	40Hz~15000Hz ±3dB
Audio Output	Balance (XLR)/ Unbalance (6.3Øjack)
Receiver Mode	Dual Channel , True-Diversity
Power Supply	DC12V-15V / 1 A
Consume Power	5 WATT
S/N Ratio	>107dB
Receiving Sensitivity	5dBuV
Antenna Power Output	9V / 100mA
Receiver Dimension	208 x 180 x 44mm
Receiver Weight	1 kg

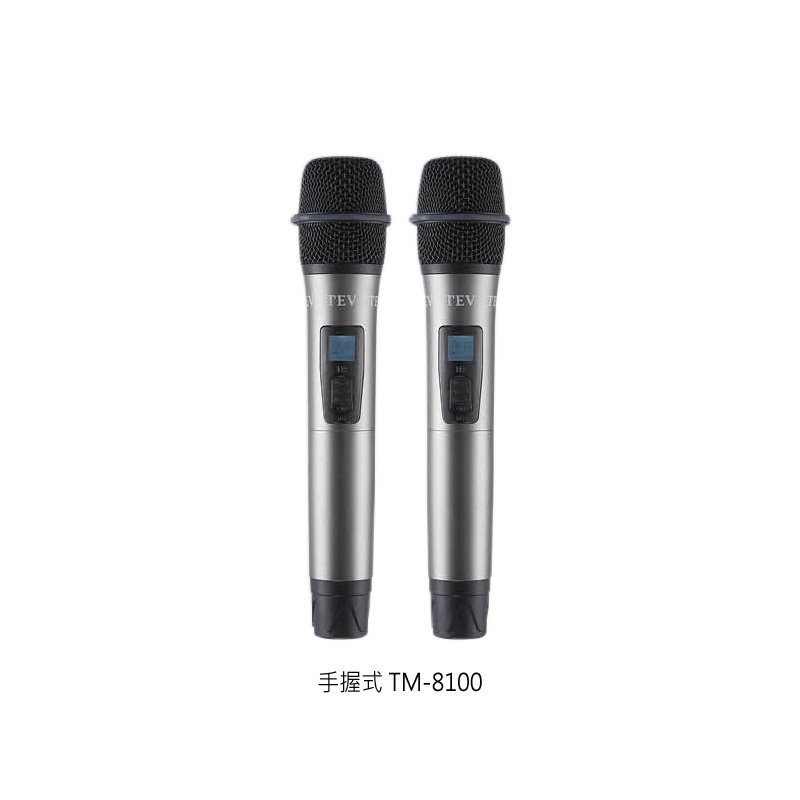

Transmit Power	30mW(Max)
Modulation Mode	FM
Max Deviation	±25KHz
Battery Voltage	3V (2x1.5V AA Battery)
Continuous Using	5-8 hour

Attention : According to the reality provide
