Function
|
Specification
|
|
FrequencyRange
|
UHF Band： 510~950 MHz
Frequency range depend on the regulations
|
|
Oscillator
|
PLL Synthesized, Preset 16 selectable channels
|
|
Frequency Bandwidth
|
12 MHz
|
|
Receiving Mode
|
Single Channel, NON-Diversity
|
|
Frequency Stability
|
± 0.005%
|
|
Modulation Mode
|
FM
|
|
LED indicator
|
To Indicate the condition of receiving.
|
|
AF Response
|
60Hz~16000Hz
|
|
RF Sensitivity
|
-95dBm for 30dB S/N Radio
|
|
DeviationRange
|
± 55KHz
|
|
Audio Output
|
10dBv max.
|
|
RF Power Output
|
10dBm
|
|
Signal to Noise Ratio
|
>107dB(A)
|
|
Overall System T.H.D
|
< 0.8%
|
|
Power Supply
|
DC12~18V
|
|
Receiver Module Dimensions
|
125 x 72 x 36mm
|
|
Receiver Module Weight
|
90g
|
|
Battery
|
1.5V (AA) x 2
|
|

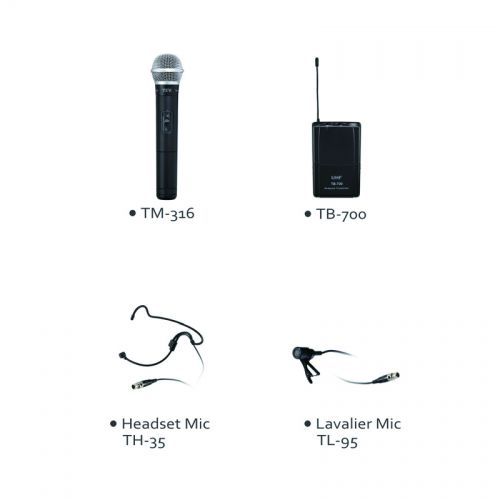

Microphone Dimensions
|
Ø57mm x 242mm
|
